安建科技推出的IGBT采用先進的溝槽-場截止型(Trench-FS)結構，由安建科技自主研發并掌握相關知識產權。
采用”Taiko”薄片晶圓加工技術，創新的精細溝槽結構，降低芯片導通及開關能量損耗，通過改進芯片元胞設計，保證IGBT器件的耐用性以及高的短路電流能力，獨特的耐壓結構設計，保證器件的高可靠性。
安建已量產 1200V-25A EasyPIM? 1B IGBT 模塊及 1200V-50A EasyPIM? 2B IGBT 模塊，能夠與國外最先進的第七代IGBT模塊實現Pin-to-Pin替代。
| Product | Package | Compatible Housing | BVCES | IC | VGE(th) | Vcesat | Configuration | Datasheet | ||
| Max. | Typ. | Max. | ||||||||
| A | V | V | V | V | ||||||
| 篩選 | 篩選 | 篩選 | 篩選 | 篩選 | 篩選 | 篩選 | 篩選 | 篩選 | 篩選 | 重置篩選 |
| JG1A30P60EG2 | 1A | EasyPIM? 1B | 600 | 30 | 5 | 7 | 1.6 | 1.9 | PIM | |

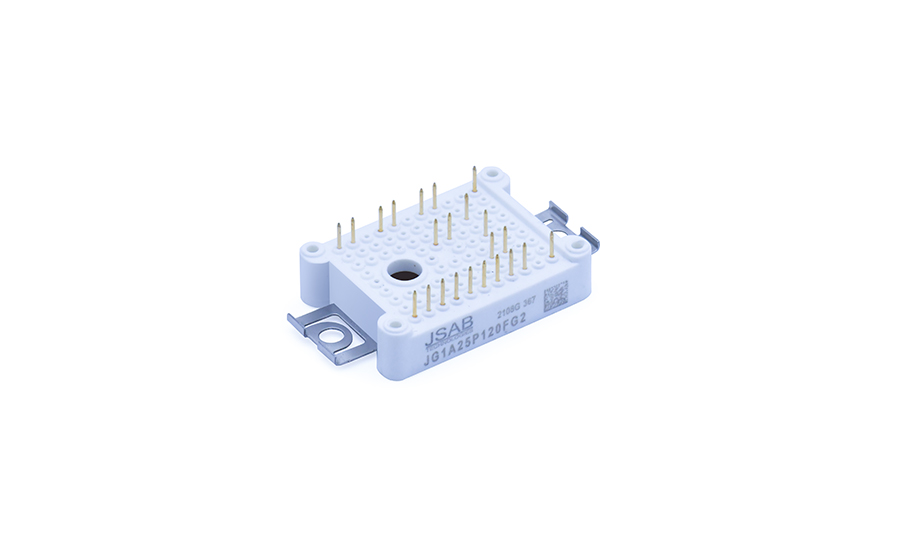

| JG1A25P120FG2 | 1A | EasyPIM? 1B | 1200 | 25 | 5.5 | 7.5 | 1.85 | 2.2 | PIM | |
| JG1B25P120FG2 | 1B | EasyPIM? 2B | 1200 | 25 | 5.5 | 7.5 | 1.85 | 2.2 | PIM | |
| JG1B35P120FG2 | 1B | EasyPIM? 2B | 1200 | 35 | 5.5 | 7.5 | 1.65 | 2 | PIM | |
| JG1B50P120FG2 | 1B | EasyPIM? 2B | 1200 | 50 | 5.5 | 7.5 | 1.7 | 2 | PIM | |
| JG1D25P120FG2 | 1D | EconoPIM? 2 | 1200 | 25 | 5.5 | 7.5 | 1.85 | 2.2 | PIM | |

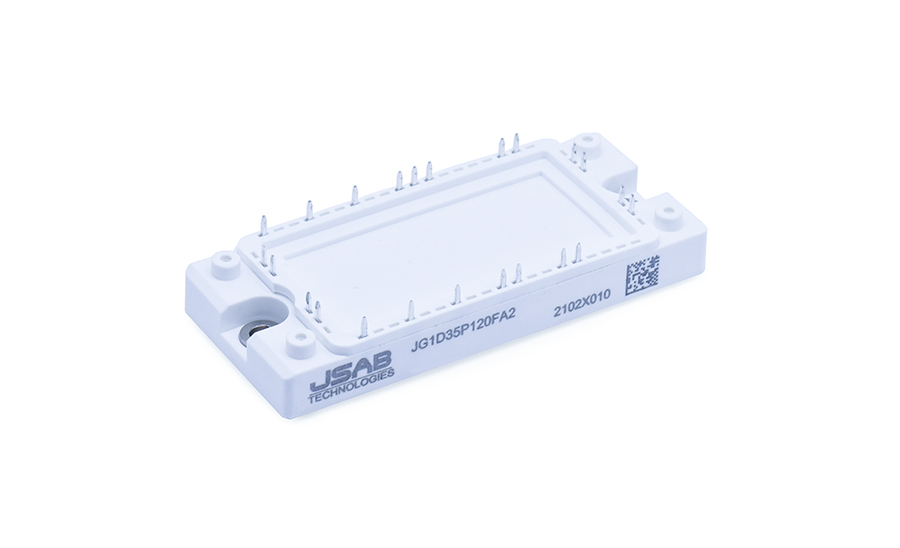

| JG1D35P120FG2 | 1D | EconoPIM? 2 | 1200 | 35 | 5.5 | 7.5 | 1.65 | 2 | PIM | |
| JG1D50P120FG2 | 1D | EconoPIM? 2 | 1200 | 50 | 5.5 | 7.5 | 1.7 | 2 | PIM | |
| JG2D75P120FG | 2D | EconoPIM? 2 | 1200 | 75 | 5.5 | 7.5 | 1.65 | 2 | PIM | |
| JG3D25P120FG2 | 3D | EconoPIM? 2 | 1200 | 25 | 5.5 | 7.5 | 1.85 | 2.2 | PIM | |
| JG3D40P120FG2 | 3D | EconoPIM? 2 | 1200 | 40 | 5.5 | 7.5 | 1.75 | 2.1 | PIM | |
| JG1E75P120FG | 1E | EconoPIM? 3 | 1200 | 75 | 5.5 | 7.5 | 1.65 | 2 | PIM | |
| JG1E100P120FG | 1E | EconoPIM? 3 | 1200 | 100 | 5.5 | 7.5 | 1.65 | 2 | PIM | |
| JG2E150P120FM | 2E | EconoPIM? 3 | 1200 | 150 | 5 | 6.8 | 1.75 | 1.95 | PIM | |
| JG3E50P120FG2 | 3E | EconoPIM? 3 | 1200 | 50 | 5.5 | 7.5 | 1.7 | 2 | PIM | |
| JG3E75P120FG | 3E | EconoPIM? 3 | 1200 | 75 | 5.5 | 7.5 | 1.65 | 2 | PIM | |
| JG1F100F120FG | 1F | 34 mm | 1200 | 100 | 5.5 | 7.5 | 1.65 | 2 | Dual | |
| JG1F100F120FG3 | 1F | 34 mm | 1200 | 100 | 5.5 | 7.5 | 1.65 | 2 | Dual | |
| JG1F100F120HG | 1F | 34 mm | 1200 | 100 | 5.5 | 7.5 | 1.9 | 2.3 | Dual | |
| JG1F150F120FG3 | 1F | 34 mm | 1200 | 150 | 5.5 | 7.5 | 2 | 2.4 | Dual | |
| JG1G150F120FG | 1G | 62 mm | 1200 | 150 | 5.5 | 7.5 | 1.65 | 2 | Dual | |
| JG1G200F120FG | 1G | 62 mm | 1200 | 200 | 5.5 | 7.5 | 1.65 | 2 | Dual | |
| JG1G300F120FG | 1G | 62 mm | 1200 | 300 | 5.5 | 7.5 | 1.65 | 2 | Dual | |
| JG1G400F120FM | 1G | 62 mm | 1200 | 400 | 5 | 7 | 1.9 | 2.3 | Dual | |
| JG1H100S120FG | 1H | EconoPACK? 3 | 1200 | 100 | 5.5 | 7.5 | 1.65 | 2 | Six-Pack | |
| JG1H200S120FM | 1H | EconoPACK? 3 | 1200 | 200 | 5 | 7 | 1.9 | 2.3 | Six-Pack | |
| JG1M25P120FG2 | 1M | EasyPIM - 2 | 1200 | 25 | 5.5 | 7.5 | 1.85 | 2.2 | PIM | |
| JG1N20S65EG2 | 1N | EasyPACK 750 | 650 | 20 | 5 | 7 | 1.7 | 2 | Six-Pack | |
| JG1O400S65FM | 1O | HP1 | 650 | 400 | 5 | 6.8 | 1.5 | 1.8 | Six-Pack | |
| JG1P820S75FM | 1P | HPD | 750 | 820 | 5 | 6.8 | 1.3 | 1.7 | Six-Pack | |
| JG1Q450F120FM | 1Q | Econdual 3 | 1200 | 450 | 5 | 6.8 | 1.85 | 2.15 | Dual | |
| JG1Q600F120FM | 1Q | Econdual 3 | 1200 | 600 | 5 | 6.8 | 1.85 | 2.15 | Dual | |
備注：EasyPIM?1B、EasyPIM? 2B、EconoPIM? 2、EconoPIM? 3均為英飛凌公司注冊的商標。
